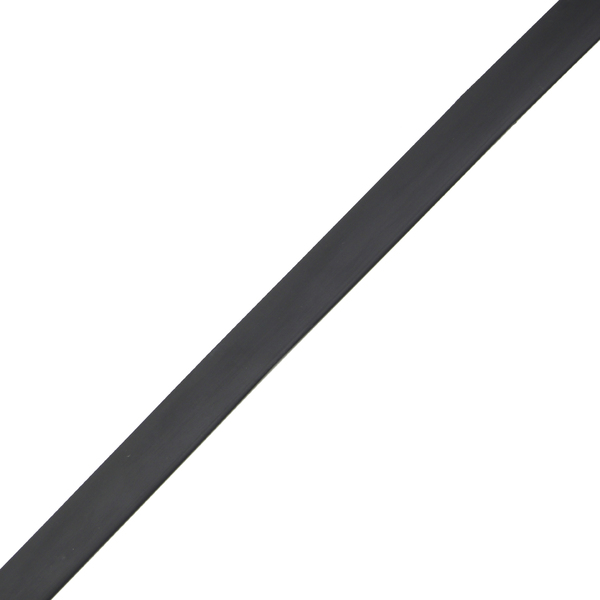

Audiocore 12 mm Black Shrinkable Tube
Product information
12 mm shrinkable tubes by Audiocore are designed for cable protection and isolation. They are also used for protection of soldered spots, cable sleeve repairing, cable color marking, etc. The special feature of this tube is its ability to quickly shrink in size when heated. Once shrunk, it envelops a surface tightly, repeating its contours and creating strong, hermetic cover. Heating can be done with a special heating pistol (fan).
Audiocore’s shrinkable tubes have 3:1 shrinking coefficient and are made of polyolefin. They fully meet the standards: UL, CSA, RoHS, Halogen Free.
Specifications| Tensile strength (MPa) | ≥ 10.4 |
| Elongation (%) | ≥ 200 |
| Longitudinal change (%) | ± 5 |
| Dielectric strength (kv/mm) | ≥15 |
| Volume resistivity (Ω.cm) | ≥ 1x10^14 |
| Water absorption (%) | < 0.5 |
| Copper stability (UL 224) | Pass |
